Cesium Iodide, activated with Thallium - CsI(Tl) - is one of the brightest available scintillators, with a broad emission peaking at 550nm. CsI(Tl) has good stopping power, physically rugged and and well suited to a broad range of applications.
CsI(Tl) Scintillatior CsI Matrix Well Matched With PD X-Ray Imaging
Product Details:
Place of Origin: China
Brand Name: Yunjia
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: foam box
Delivery Time: 4-6 weeks
Payment Terms: T/T, Paypal
Supply Ability: 10000pcs/year
Description:
Material: CsI(Tl) Crystal Pixel: Customization
Number Of Pixel: Customization Reflector: TiO2
Product Name: CsI Scintillator Array, CsI Matrix Full Name: Cesium Iodide, Activated With Thallium
HS Code: 9001909000 Color: Transparent
Highlight: CsI Matrix PD X-Ray Imaging, CsI(Tl) Scintillatior Array, transparent CsI Matrix

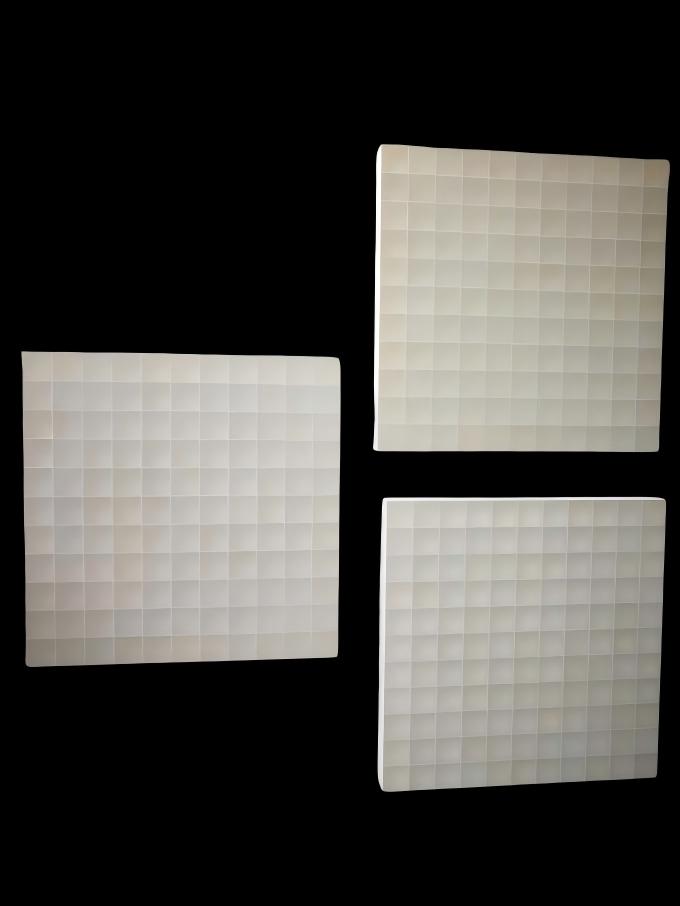

Well matched with PD X-ray imaging CsI(Tl) Matrix CsI(Tl) scintillatior Array
Cesium Iodide, activated with Thallium - CsI(Tl) - is one of the brightest available scintillators, with a broad emission peaking at 550nm. CsI(Tl) has good stopping power, physically rugged and and well suited to a broad range of applications.
CsI(Tl) is a useful scintillator offering high light yield and emits at a wavelength suitable for silicon photomultipliers (SiPMs). Typical applications include arrays of this material used in security imaging systems, such as baggage scanners.
Why Choose Yunjia:
1.Minimal pixel dimension available
2.Reduced optical crosstalk
3.Good uniformity between pixel to pixel/ Array to array
4.TiO2/BaSO4/ESR/E60 reflectors available
5.Pixel Gap: 0.08, 0.1, 0.2, 0.3mm
6.Performance testing available
Materials' Properties Comparison:
Item name | CsI(Tl) | GAGG | CdWO4 | LYSO | LSO | BGO | GOS(Pr/Tb) Ceramic |
Density(g/cm3) | 4.51 | 6.6 | 7.9 | 7.15 | 7.3~7.4 | 7.13 | 7.34 |
Hygroscopic | Slightly | No | No | No | No | No | No |
Relative light output(% of NaI(Tl)) (for y-rays) | 45 | 158(HL)/ 132(BL)/79(FD) | 32 | 65-75 | 75 | 15-20 | 71/ 118 |
Decay time(ns) | 1000 | 150(HL)/ 90(BL)/48(FD) | 14000 | 38-42 | 40 | 300 | 3000/ 600000 |
Afterglow@30ms | 0.6-0.8% | 0.1-0.2% | 0.1-0.2% | N/A | N/A | 0.1-0.2% | 0.1-0.2% |
Array type | Linear and 2D | Linear and 2D | Linear and 2D | 2D | 2D | 2D | Linear and 2D |
Mechanical design for assembling:
Based on the end use of assembled array, there are many kinds of mechanic design from Yunjia to meet the medical and security inspection industry.
1D Liner array are mainly used for Security inspection industy, such as Bagger scanner, Aviation scanner, 3D scanner and NDT. Material Including CsI(Tl), GOS:Tb/Pr Film, GAGG:Ce, CdWO4 scintillator etc. They are typically coupled with Silicon Photodiode linear array for read out.
2D array are normally used for imaging, including Medical(SPECT, PET, PET-CT, ToF-PET), SEM, Gamma camera. These 2D array are typically coupled with SIPM array, PMT array for read out. Kinheng provide 2D array including LYSO, CsI(Tl), LSO, GAGG, YSO, CsI(Na), BGO scintillator etc.

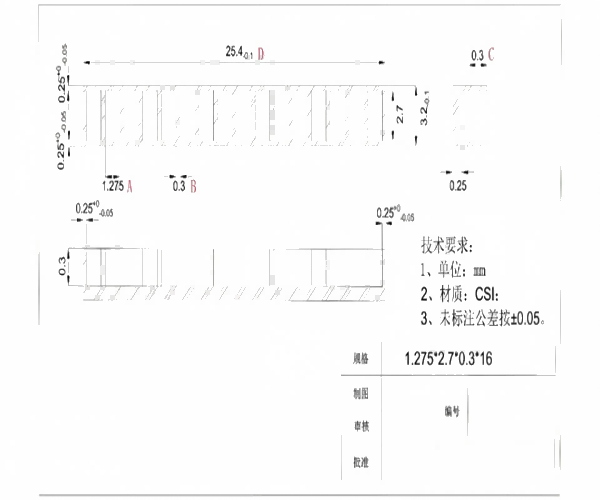

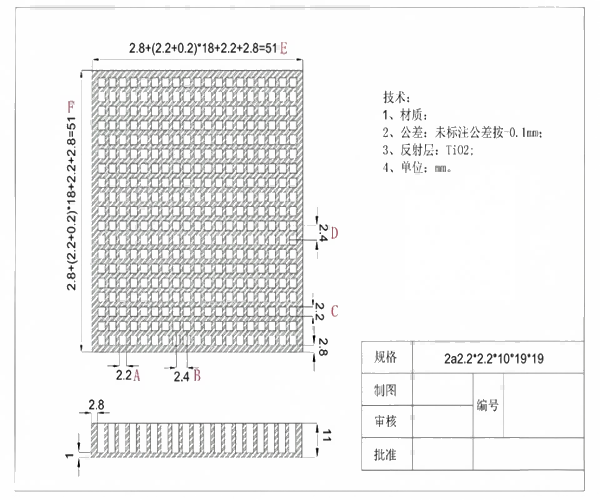

Below is Yunjia’s typically design drawing for 1D And 2D array for industry.
Typical Pixel size& numbers:
Material | Typical pixel size | Typical numbers | ||
Linear | 2D | Linear | 2D | |
CsI(Tl) | 1.275x2.7 | 1x1mm | 1x16 | 19x19 |
GAGG | 1.275x2.7 | 0.5x0.5mm | 1X16 | 8x8 |
CdWO4 | 1.275x2.7 | 3x3mm | 1x16 | 8x8 |
LYSO/LSO/YSO | N/A | 1X1mm | N/A | 25x25 |
BGO | N/A | 1x1mm | N/A | 13X13 |
GOS(Tb/Pr) ceramic | 1.275X2.7 | 1X1mm | 1X16 | 19X19 |
Minimal size of Pixel:
Material | Minimal pixel size | |
Linear | 2D | |
CsI(Tl) | 0.4mm pitch | 0.5mm pitch |
GAGG | 0.4mm pitch | 0.2mm pitch |
CdWO4 | 0.4mm pitch | 1mm pitch |
LYSO/LSO/YSO | N/A | 0.2mm pitch |
BGO | N/A | 0.2mm pitch |
GOS(Tb/Pr) ceramic | 0.4mm pitch | 1mm pitch |
Scintillation Array Reflector and Adhesive parameter:
Reflector | Thickness of Reflector+Adhesive | |
Linear | 2D | |
TiO2 | 0.1-1mm | 0.1—1mm |
BaSO4 | 0.1mm | 0.1-0.5mm |
ESR | N/A | 0.08mm |
E60 | N/A | 0.075mm |
Application:
Item name | CsI(Tl) | GAGG | CdWO4 | LYSO | LSO | BGO | GOS(Tb/Pr) Ceramic |
PET, ToF-PET | Yes | Yes | Yes | ||||
SPECT | Yes | Yes | |||||
CT | Yes | Yes | Yes | Yes | |||
NDT | Yes | Yes | Yes | ||||
Bagger scanner | Yes | Yes | Yes | ||||
Container Checking | Yes | Yes | Yes | ||||
Gamma camera | Yes | Yes |
FAQ:
1.Q: Are you a factory manufacturer?
A: Yes ,we are manufacturer with 13 years experience in the scintillator crystal industry and supplied many famous brands with good quality and service.
2.Q:Where is your main market?
A:Europe, America, Asia.
